Spherical Roller Bearings

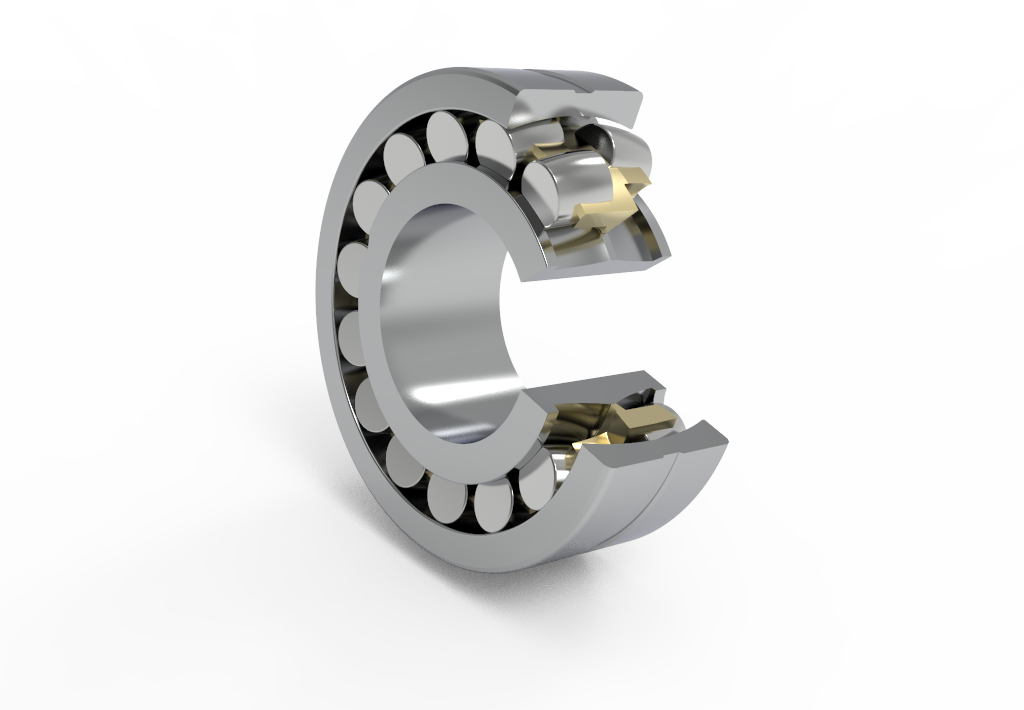

SRB have two rows of spherical rollers, the outer ring has a common concave spherical raceway, the inner ring has two concave raceways that are inclined at an angle to the bearing axis, the curvature center of the outer ring raceway is the same as the bearing center. Spherical roller bearings are self-aligning and are not affected by misalignment of the shaft and bearing box or deflection of the shaft, and can compensate for the resulting concentricity errors. In addition to bearing radial load, this type of bearing can also bear two-way axial load and its combined load. It has a large bearing capacity and good vibration and impact resistance. Spherical roller bearings are mainly used in various mechanical equipment in steel, mining, papermaking, shipbuilding, textile machinery, coal mills, electric power and other industries. They are the most widely used type of bearings in the machinery industry.

Product category

The Spherical Roller Bearings currently produced by ZWZ can be roughly divided into the following structural types：

CA type
CC type
Split D type
Vibrating Screen VB type
Continuous Casting CB type
SDB type
MB type

· CA type

· CC type

· Split D type

· Vibrating Screen VB type

· Continuous Casting CB type

· SDB type

· MB type

Spherical Roller Bearings

Check Reset

ID d

——

Reset Apply

OD D

——

Reset Apply

Width B

——

Reset Apply

CA type 1076

CC type 312

Split D type 43

Vibrating Screen VB type 19

Continuous Casting CB type 28

SDB type 21

MB type 161

3D graphics

2D graphics

Basic dimensions mm				Basic load ratings kN		Limit Rotational Speed r_min		Bearing part number	Other dimensions mm				Contact surface andChamfer Dimension					Calculation factors				Mass
d	D	B	r_min	Cr	Cor	Grease lubrication	Oil lubrication	Bearing part number	d2	D1	b	k	damin	damax	Damin	Damax	ramax	e	Y1	Y2	Y0	Mass
30	62	20	1	56.1	61.1	6100	7400	22206CA	41	53	5.5	3	34	39	54	58	1	0.32	2.09	3.11	2.04	0.295
35	72	23	1.1	72.5	81.6	6000	7500	22207CA	46	60	5.5	3	40	45	62	67	1.1	0.33	2.07	3.09	2.03	0.450
35	82	23	0.5	87.1	100	6000	7500	21307X3CA	53	70			39	52	73	78	0.3	0.28	2.41	3.59	2.35	0.652
40	80	23	1.1	82.9	93.7	4700	5700	22208CA	53	69	5.5	3	45	51	72	75	1.1	0.29	2.35	3.5	2.3	0.544
40	90	23	1.5	82.6	89	4400	5300	21308CA	56	75	5.5	3	46	54	77	84	1.5	0.28	2.43	3.61	2.37	0.751
40	90	33	1.5	127	140	4500	5600	22308CA	57	74	5.5	2.5	46	54	78	84	1.5	0.39	1.75	2.61	1.71	1.02
45	85	23	1.1	88	102	5300	6700	22209CA	57	74	5.5	2	50	55	76	80	1.1	0.28	2.39	3.56	2.34	0.629
45	100	36	1.5	153	179	3800	4800	22309CA	63	82	5.5	2.5	51	60	85	94	1.5	0.38	1.77	2.64	1.73	1.53
50	90	23	1.1	88	105	5000	6300	22210CA	62	79	5.5	2	55	59	81	85	1.1	0.26	2.6	3.87	2.54	0.658
50	110	27	2	128	141	3400	4300	21310CA	69	92			57	67	96	103	2	0.24	2.81	4.18	2.75	1.34
50	110	40	2	193	226	3400	4300	22310CA	69	91	5.5	2.5	57	65	95	103	2	0.38	1.78	2.65	1.74	2.02
55	100	25	1.5	114	138	4500	5600	22211CA	68	88	5.5	2	61	66	91	94	1.5	0.25	2.69	4	2.63	0.897
55	120	29	2	153	164	3200	3900	21311CA	75	102	5.5	2.5	62	71	105	113	2	0.25	2.67	3.98	2.62	1.67
55	120	43	2	214	249	3200	4000	22311CA	75	100	5.5	2.5	62	71	104	113	2	0.37	1.8	2.69	1.76	2.63
55	120	43	2	214	249	3200	3900	22311CAF3	75	100			62	71	104	113	2	0.37	1.8	2.69	1.76	2.53
60	110	28	1.5	136	167	4000	5000	22212CA	75	95	5.5	2	66	72	98	104	1.5	0.24	2.77	4.13	2.71	1.03
60	130	31	2.1	177	217	3000	3600	21312CA	86	111	5.5	3	69	84	113	121	2	0.24	2.84	4.23	2.78	2.08
60	130	46	2.1	248	291	3000	3800	22312CA	81	109	5.5	3	69	78	112	121	2	0.37	1.85	2.75	1.8	3.25
60	130	46	2.1	248	291	3000	3600	22312CAF3	81	109			69	78	112	121	2	0.37	1.85	2.75	1.8	3.30
65	100	35	1.1	130	205	3400	4200	24013CA	76	87	5.5	2.5	70	74	89	95	1.1	0.32	2.12	3.15	2.07	1.01
65	120	31	1.5	164	208	3800	4800	22213CA	82	104	5.5	2.5	71	79	107	114	1.5	0.25	2.69	4	2.63	1.58
65	140	33	2.1	197	223	2800	3600	21313CA	87	119	5.5	3	74	85	123	131	2	0.25	2.69	4	2.63	2.58
65	140	48	2.1	286	344	2600	3400	22313CA	88	117	5.5	3	74	85	121	131	2	0.35	1.92	2.86	1.88	3.58
65	140	48	2.1	286	344	2600	3400	22313CAF3	88	117			74	85	121	131	2	0.35	1.92	2.86	1.88	3.56
70	125	31	1.5	164	208	3600	4500	22214CA	87	110	6	2.5	76	84	113	119	1.5	0.24	2.83	4.21	2.77	1.61
70	150	35	2.1	215	247	2400	3200	21314CA	95	128			79	93	131	141	2	0.25	2.69	4	2.63	3.02
70	150	51	2.1	321	394	2200	3000	22314CA	95	125	8.3	4	79	92	130	141	2	0.35	1.94	2.88	1.89	4.45
70	150	51	2.1	321	394	2200	3000	22314CAF3	95	125			79	92	130	141	2	0.35	1.94	2.88	1.89	4.42
75	115	40	1.1	168	266	2900	3500	24015CA	87	100	5.5	3	80	85	103	110	1.1	0.32	2.12	3.15	2.07	1.49
75	130	31	1.5	170	225	3400	4300	22215CA	92	114	5.5	2.5	81	89	118	124	1.5	0.24	2.76	4.11	2.7	1.76
